New design hot sale racing motorcycle 50cc 150cc 168cc
ADV
Product parameters
| Model | QX50QT-15 | QX150T-15 | QX200T-15 |
| Engine Type | 139QMB | 1P57QMJ | 161QMK |
| Displacement(cc) | 49.3cc | 149.6cc | 168cc |
| Compression ratio | 10.5:1 | 9.2:1 | 9.2:1 |
| Maximum Power(kw/r/min) | 2.4kw/8000r/min | 5.8kw/8000r/min | 6.8kw/8000r/min |
| Maximum Torque(Nm/r/min) | 2.8Nm/6500r/min | 8.5Nm/5500r/min | 9.6Nm/5500r/min |
| Exterior size(mm) | 1800×700×1065mm | 1800×700×1065mm | 1800×700×1065mm |
| Wheel Base(mm) | 1280mm | 1280mm | 1280mm |
| Gross Weight(kg) | 105kg | 110kg | 110kg |
| Brake type | F=Disk, R=Drum | F=Disk, R=Drum | F=Disk, R=Drum |
| Tire,Front | 120/70-12 | 120/70-12 | 120/70-12 |
| Tire,Rear | 120/70-12 | 120/70-12 | 120/70-12 |
| Fuel Tank capacity(L) | 4.2L | 4.2L | 4.2L |
| Fuel mode | carburetor | carburetor | carburetor |
| Maximum Speed(km) | 55 km/h | 95km/h | 110km/h |
| Battery size | 12V/7AH | 12V/7AH | 12V/7AH |
| Container | 84 | 84 | 84 |
Product Description
Features:
1) Adopt Qianxin 139QMB,1P57QMJ and 161QMK engine, 50cc,150cc and 168cc displacement, single cylinder, air-cooled, overhead cam;
2) Inverted front shock absorber, rebound damping adjustable;
3) Single cylinder oil-pressure center rear shock absorber with inner airbag, compression damping adjustable;
4) High quality chrome-molybdenum steel front frame with high strength feature and aluminum alloy rear frame with light weight, in order to ensure the stability and improve the safety factor and durability;
5) Adopt high quality carburetor, stronger power, stable performance;
6) One-piece non-welded aluminum alloy rear flat fork, ensure stable and durable performance;
7) Front disc brake: equipped with dual-piston calipers and copper sintered brake pads;
8) Rear drum brake: equipped with single-piston calipers, copper sintered brake pads;
9) Chromed spokes, first-class brand enduro tires, front&rear 120/70-12.

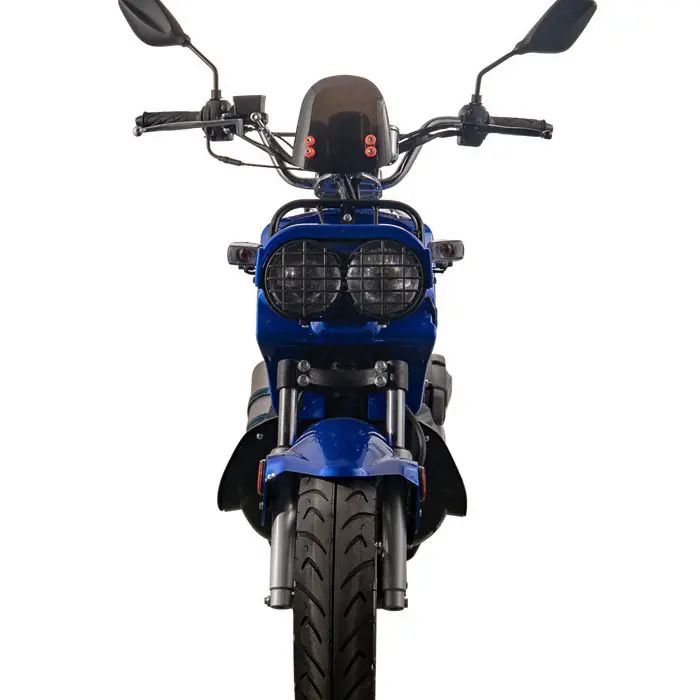

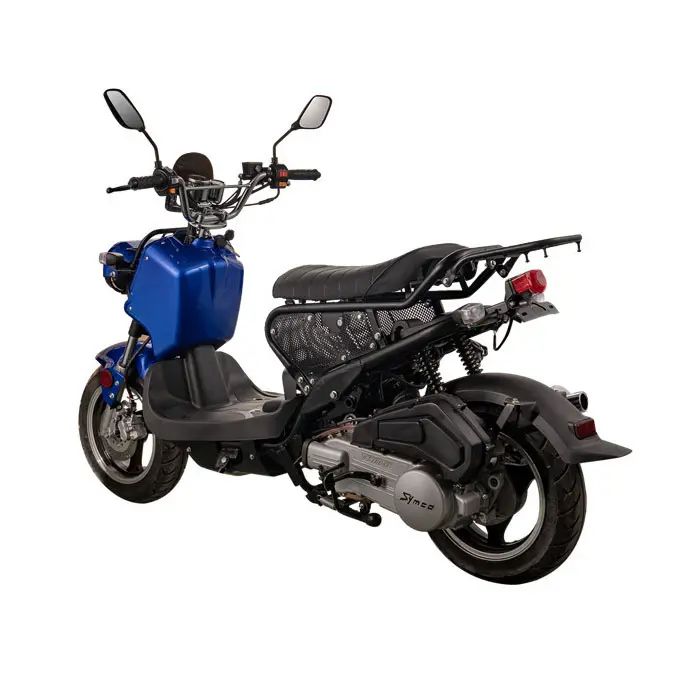

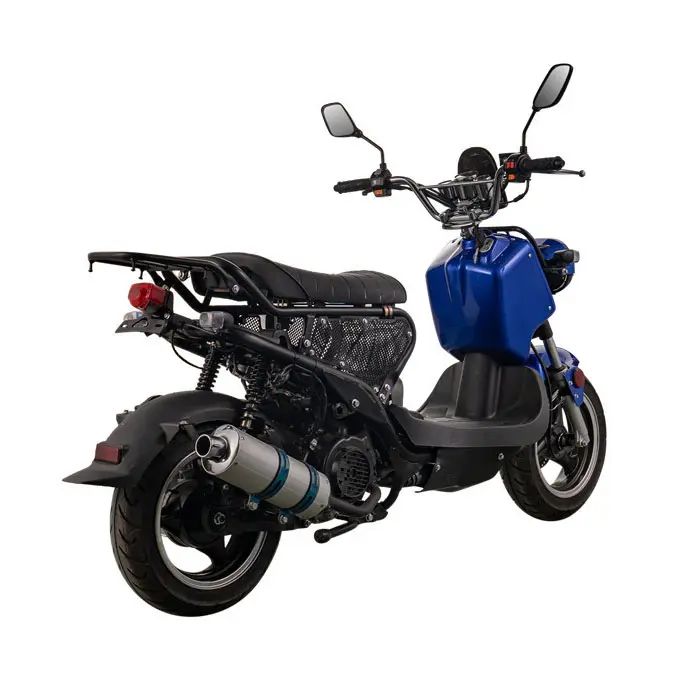

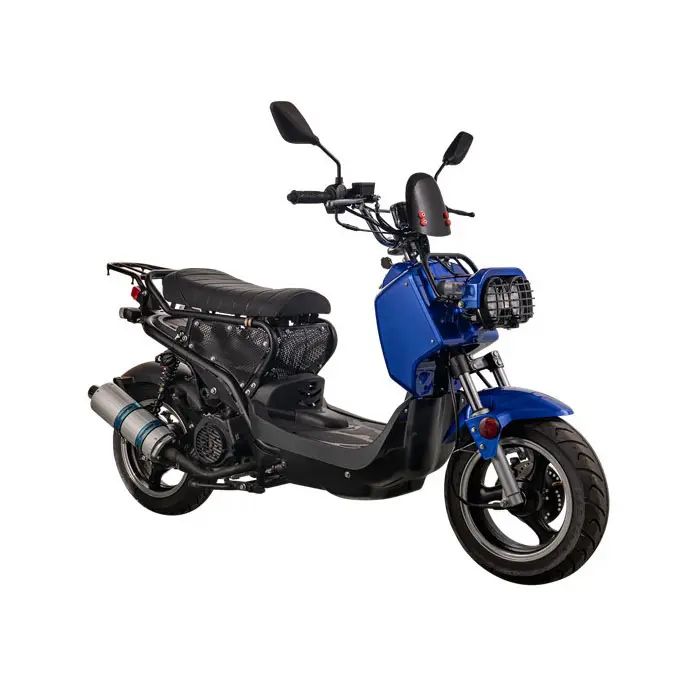

Detail pictures
Package

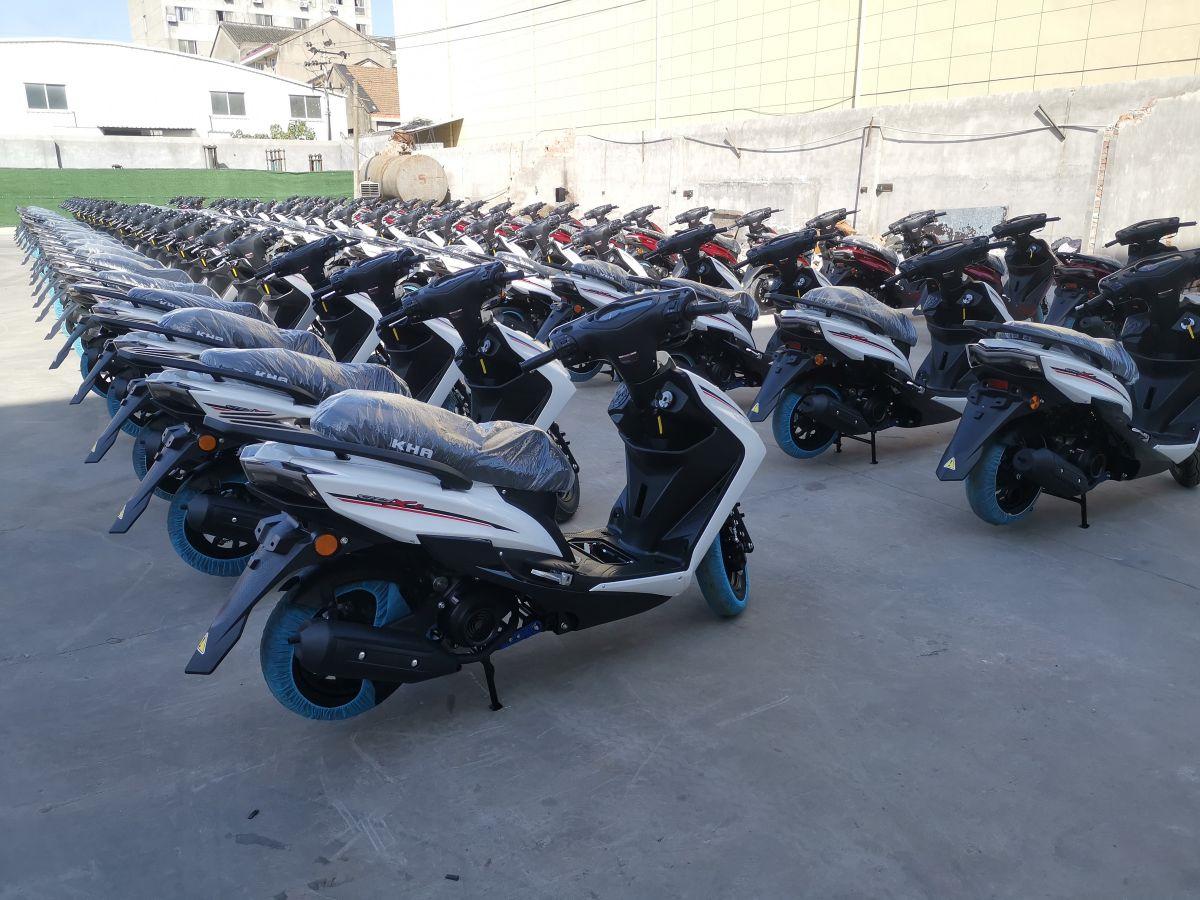

Picture of product loading
RFQ
A:Yes,we provide sample service,the sample quantity can be 1-5pcs .
A:30-45 days normally, detail delivery date should be decided according to production season and order quantity.
A:Of course, our customized MOQ is 1 pieces.
A:We are a factory who have 30+ years experience for OEM and ODM. Can customized to meet your specific needs.
